KNX Home Automation
in Dubai & the UAE
Transform villas, apartments, hotels and offices into intelligent spaces with the LEXA KNX range — smart scenario panels, switches, dimmers, actuators, thermostats and sensors, engineered to the global KNX standard and delivered, designed & installed by Promax.
One system. Every room. Total control.
KNX is the globally certified open standard for home & building automation. With LEXA KNX by Promax, lighting, curtains, climate, scenes and energy are controlled from elegant wall panels, mobile devices and automated schedules — reliable, scalable and future-proof for the UAE climate and lifestyle.
Smart Lighting & Scenes
One-touch moods, dimming and circadian control across the whole home.
Climate & Energy
KNX thermostats and actuators cut cooling costs in Gulf conditions.
Open & Reliable
Certified KNX — no lock-in, works for decades, easy to expand.
Supply · Design · Install
Promax delivers turnkey KNX projects across Dubai & the UAE.
Smart Scenario & Touch Panels
Five signature glass panel series — FALL, BLOSSOM, AUTUMN, WAVE and SENSE — in square, rectangular, slide and dial formats, with matching KNX thermostats. Crystal-tempered glass, backlit keys and a choice of luxury finishes.

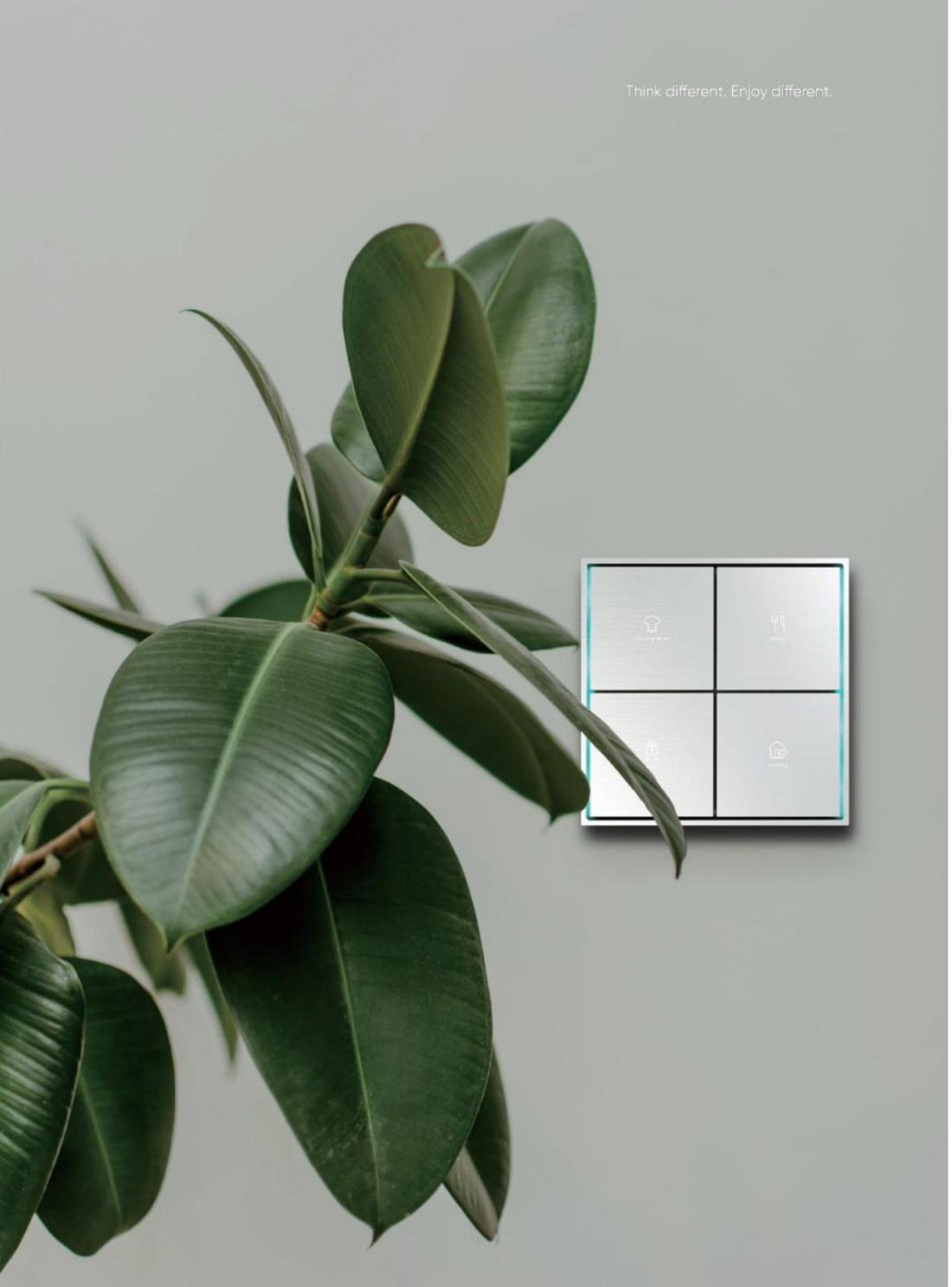

LEX FALL — Scenario Panel (Classic)
The flagship LEX FALL scenario panel: a crystal-tempered glass KNX control panel with backlit soft-touch keys for lighting scenes, curtains, HVAC and mood control. Precision-milled aluminium frame with an edge-lit indicator, engineered for luxury villas and premium interiors.

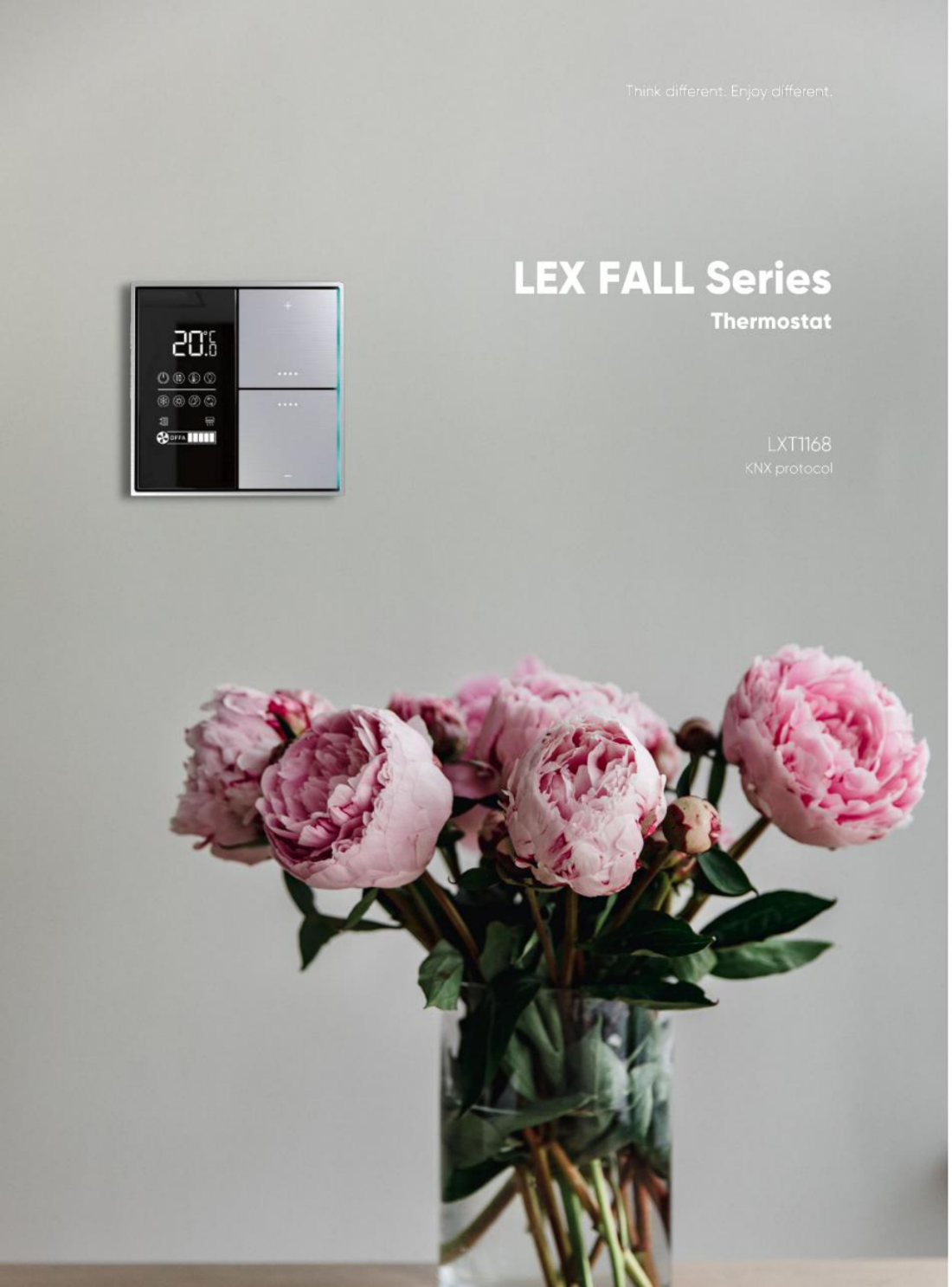

LEX FALL — KNX Thermostat Panel
Matching FALL-series KNX thermostat with a crisp digital display for room temperature, fan-coil and AC control — fully integrated with the same scene panels for a seamless wall aesthetic.

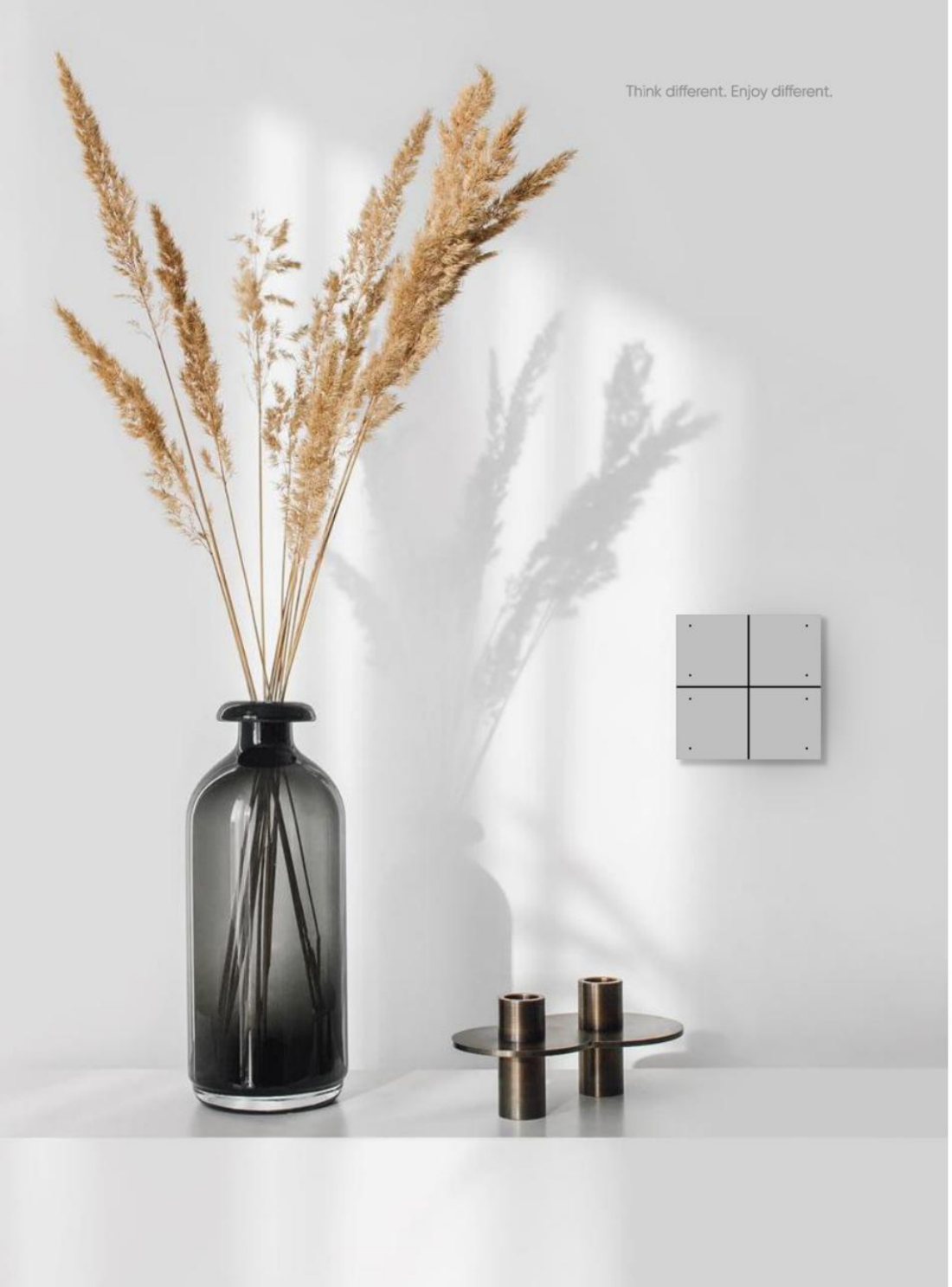

LEX BLOSSOM — Scenario Magic-Color Panel (Super-Touch)
BLOSSOM Super-Touch panels add colour-changing status keys and a more tactile response. Magic-colour indicators give clear visual feedback for every scene, ideal for modern apartments and hospitality suites.

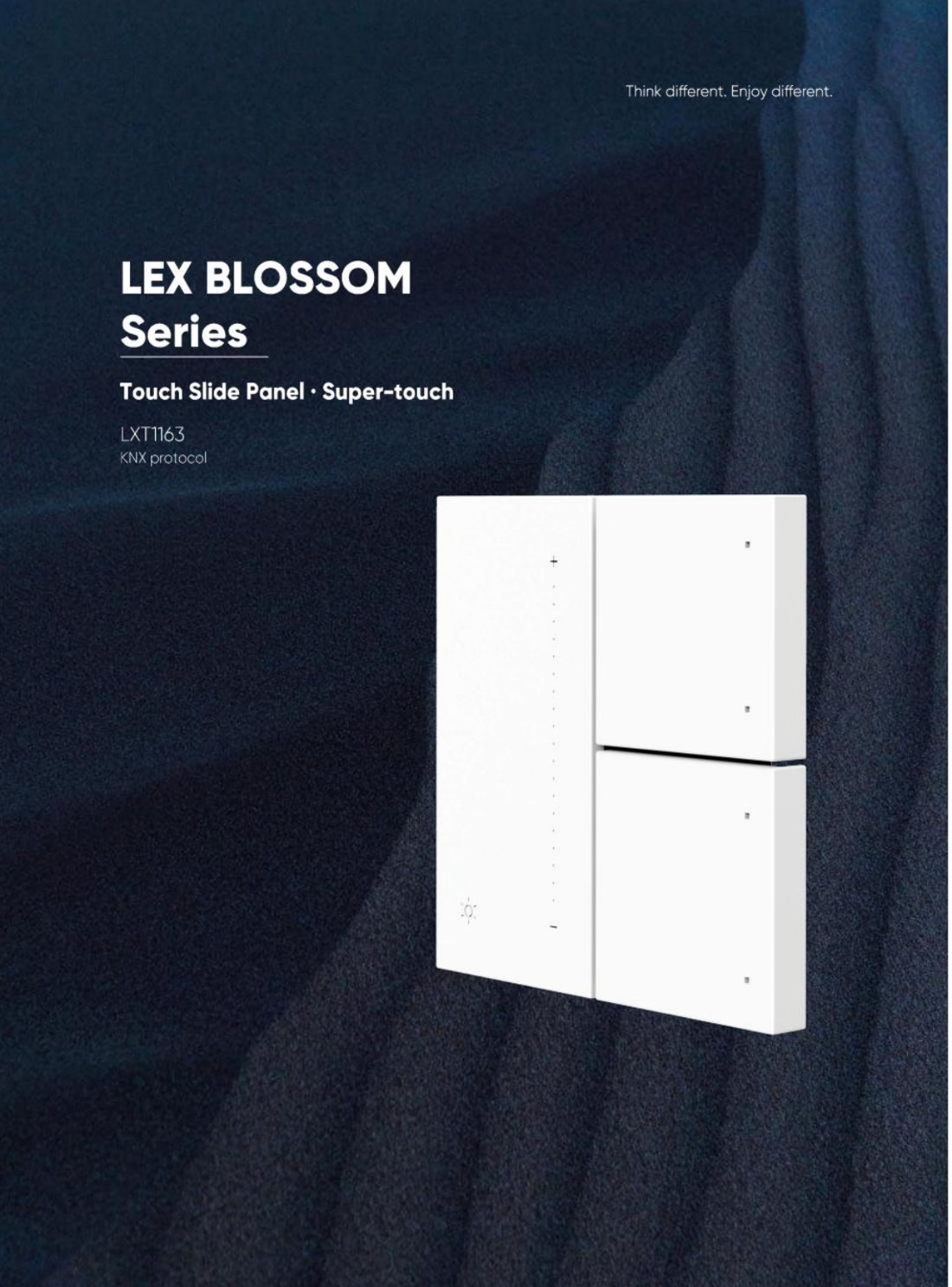

LEX BLOSSOM — Touch Slide Panel (Super-Touch)
A frameless touch-slide KNX panel with a vertical dimming/brightness slider and scene keys on a single seamless glass surface — a minimalist statement piece for high-end living spaces.
LEX AUTUMN — Modern Scenario Panel
The AUTUMN series pairs warm, matte architectural finishes with modern scenario control. Clean labelled keys for everyday scenes make it perfect for residences that favour understated elegance.

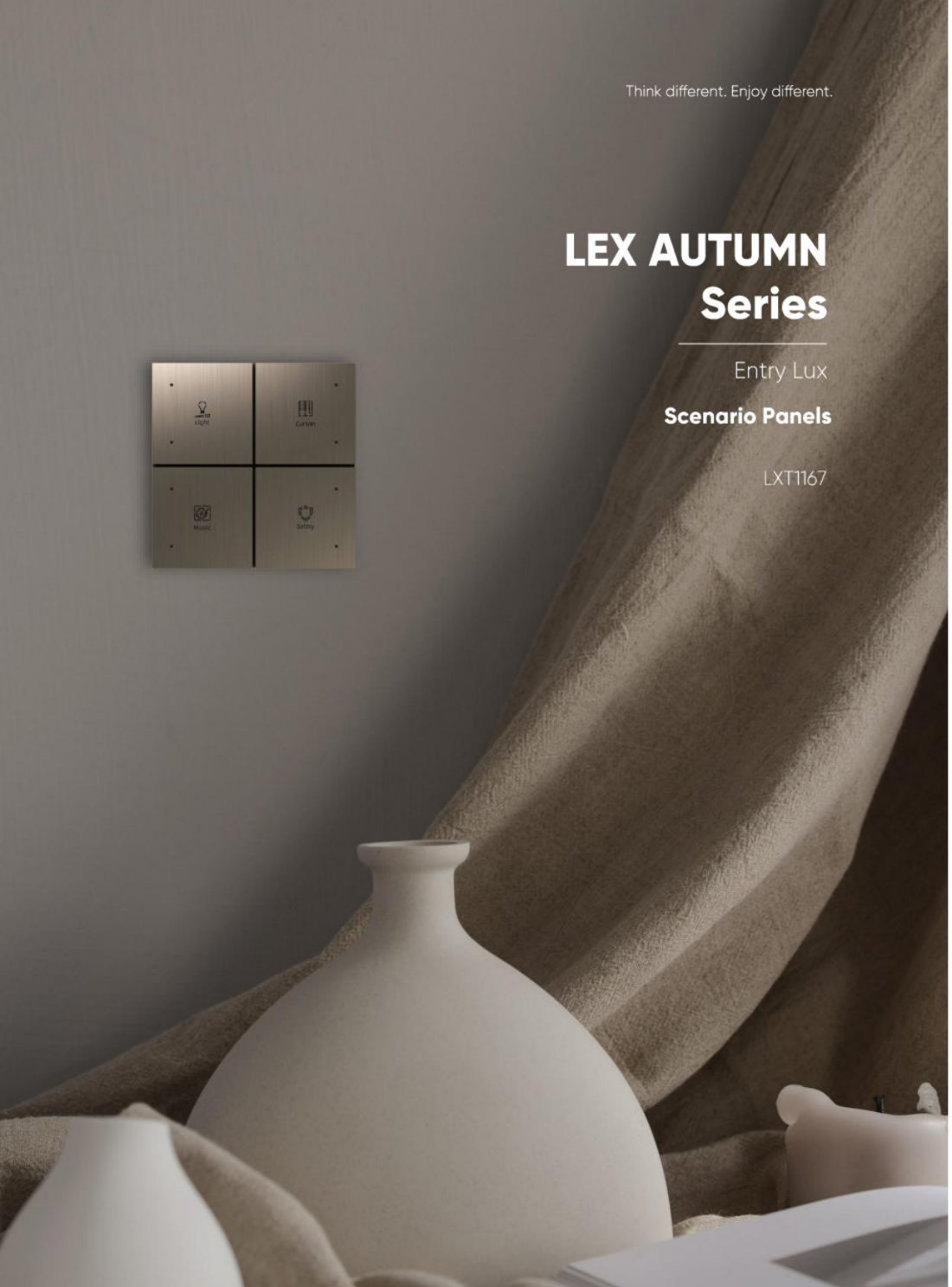

LEX AUTUMN — Entry Lux Scenario Panel
An entry-level Lux scenario panel offering the AUTUMN look at project-friendly value — a smart choice for multi-room villa and apartment roll-outs across the UAE.

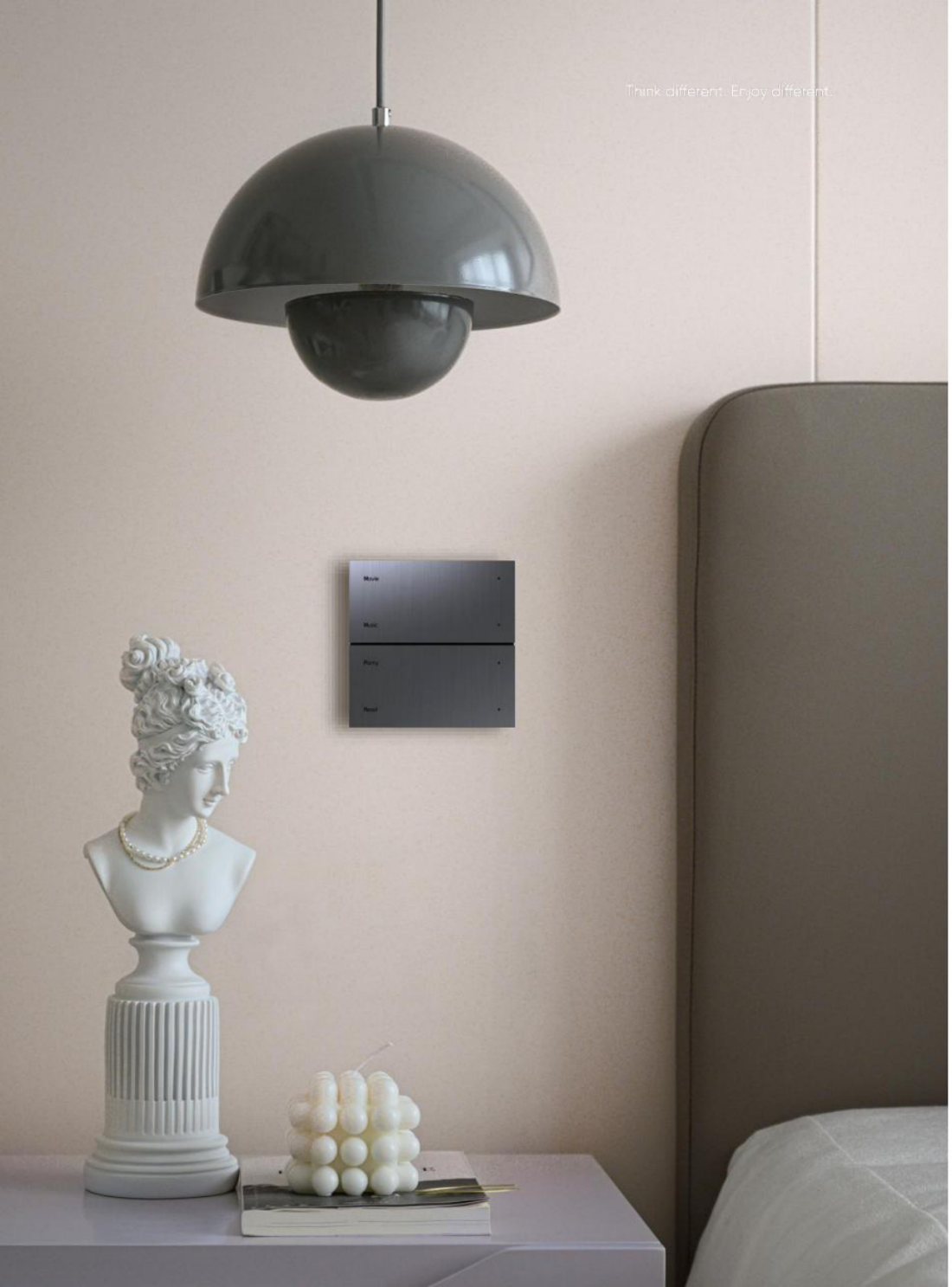

LEX WAVE — KNX Thermostat
The WAVE KNX thermostat combines climate control with an elegant glass fascia and gold/graphite finishes — bedroom and living-room comfort that looks as good as it performs.

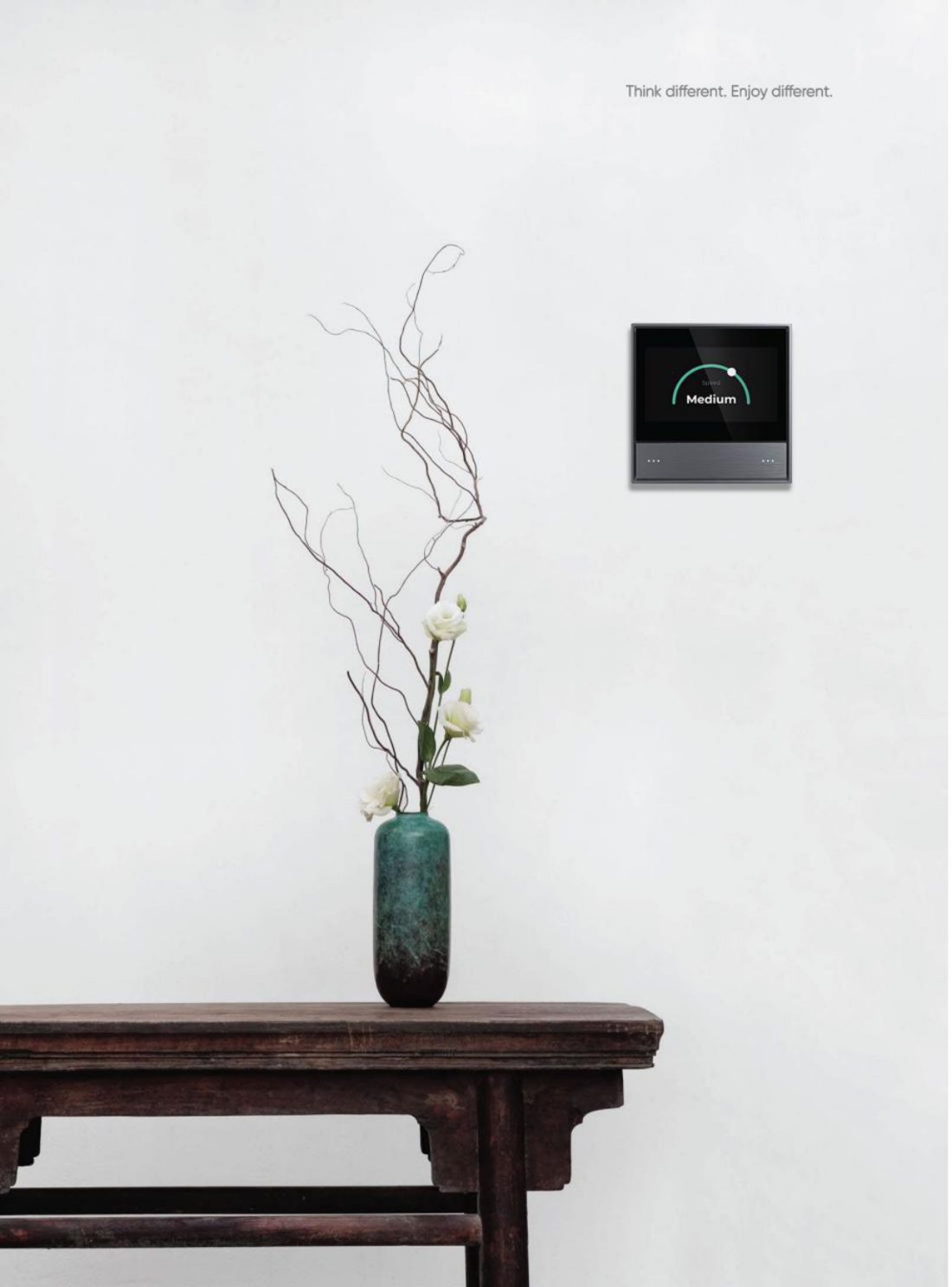

LEX SENSE — Multifunctional Touch Panel
SENSE is a KNX 2-button multifunctional touch panel with a circular control dial for intuitive dimming, climate and scene control — the most advanced interface in the LEXA line.
A finish for every interior
LEXA panels and wiring devices share a coordinated palette of premium metal and glass finishes, so switches, sockets and scene panels match beautifully on every wall.

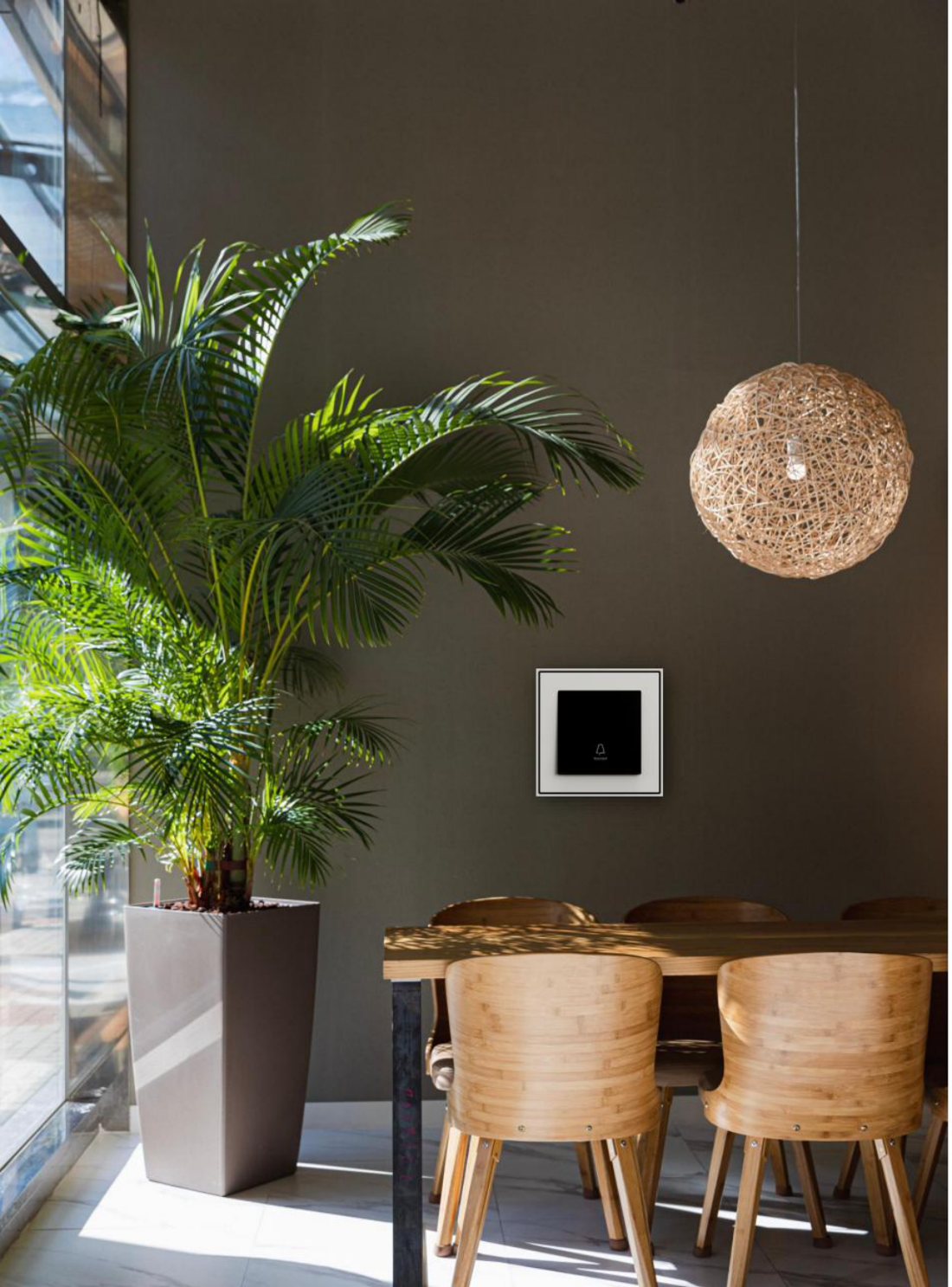

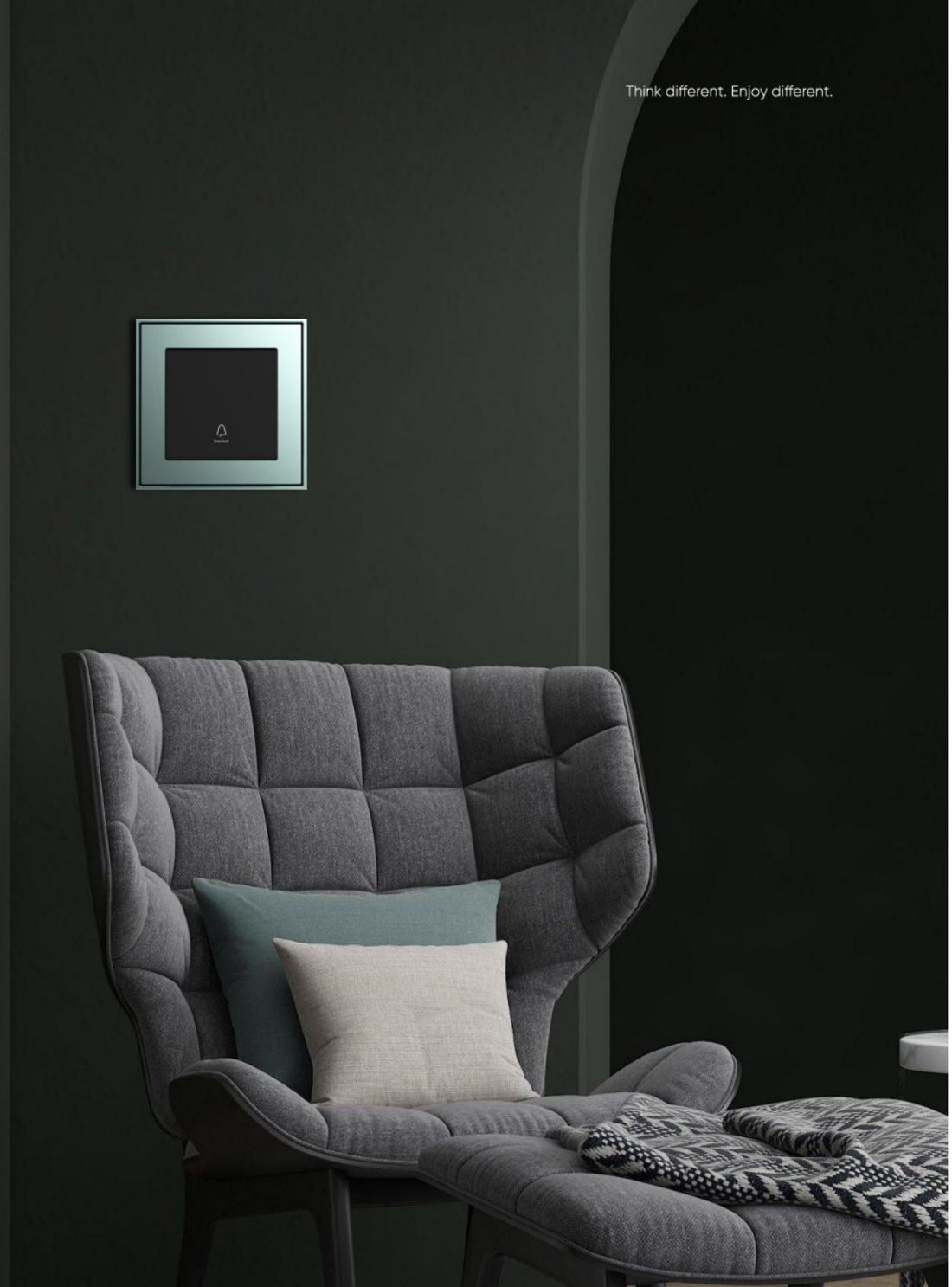

Designer Switches & Sockets

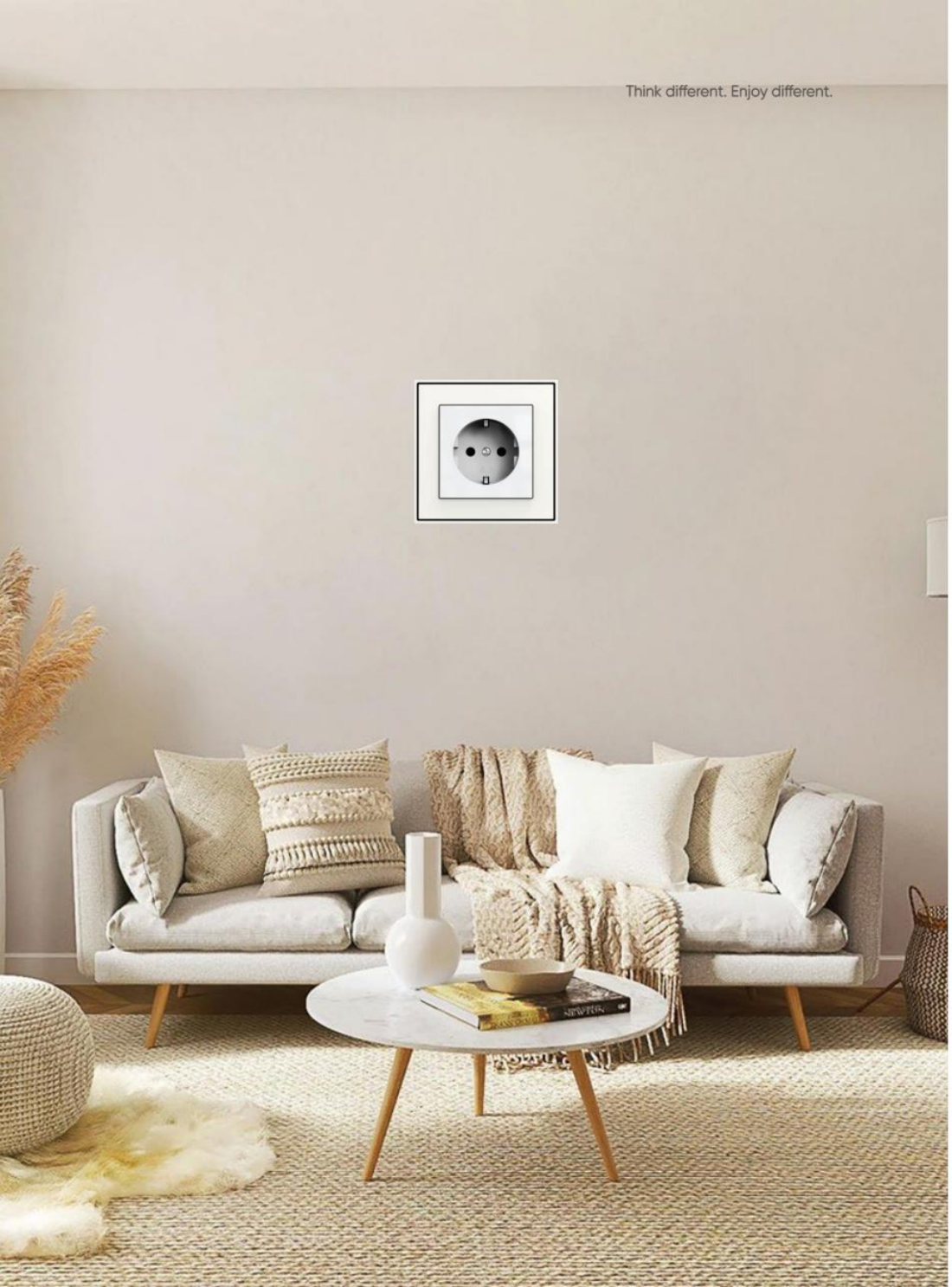

A full 86-type range of smart-look switches, self-return (KNX) switches, USB and universal power sockets, TV, data, telephone and German-type (Schuko) sockets — all colour-matched to the LEXA panel series.
| Model | Product | Type |
|---|---|---|

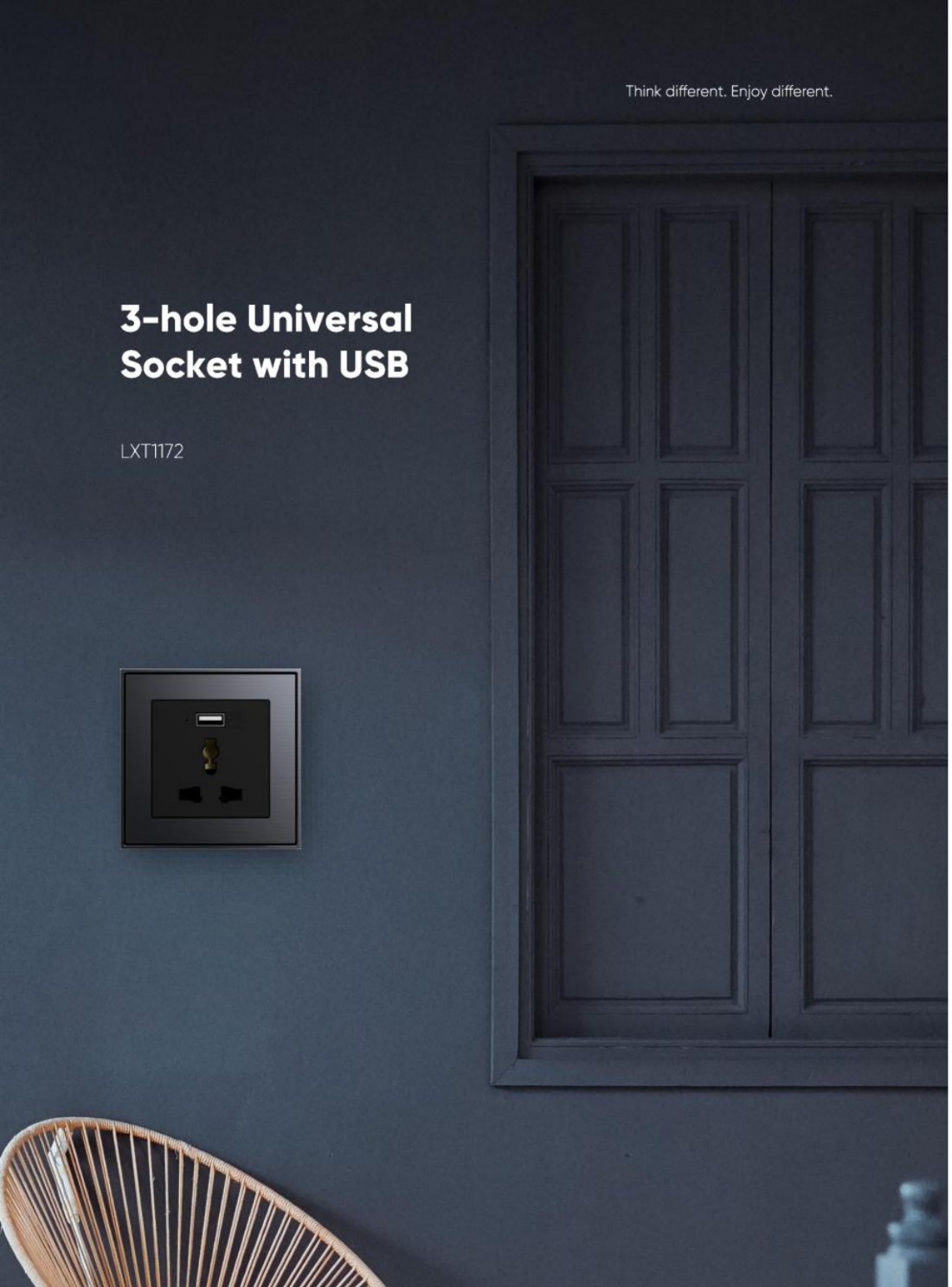

| LXT1172 | 3-Hole Universal Socket with USB | KNX / 86-type |

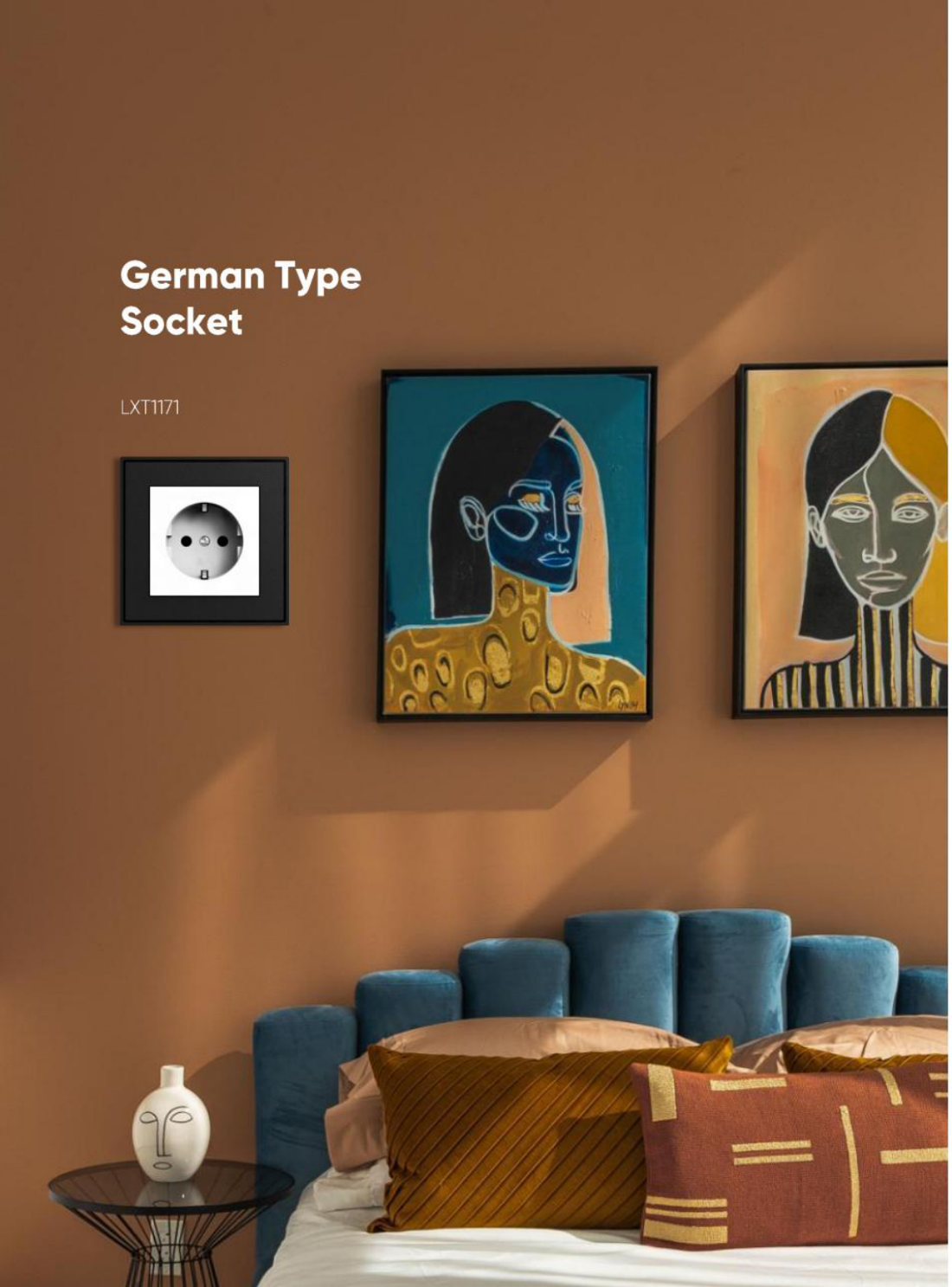

| LXT1171 | German-Type (Schuko) Socket | KNX / 86-type |
| LXT1174 | Computer / Data Socket | KNX / 86-type |

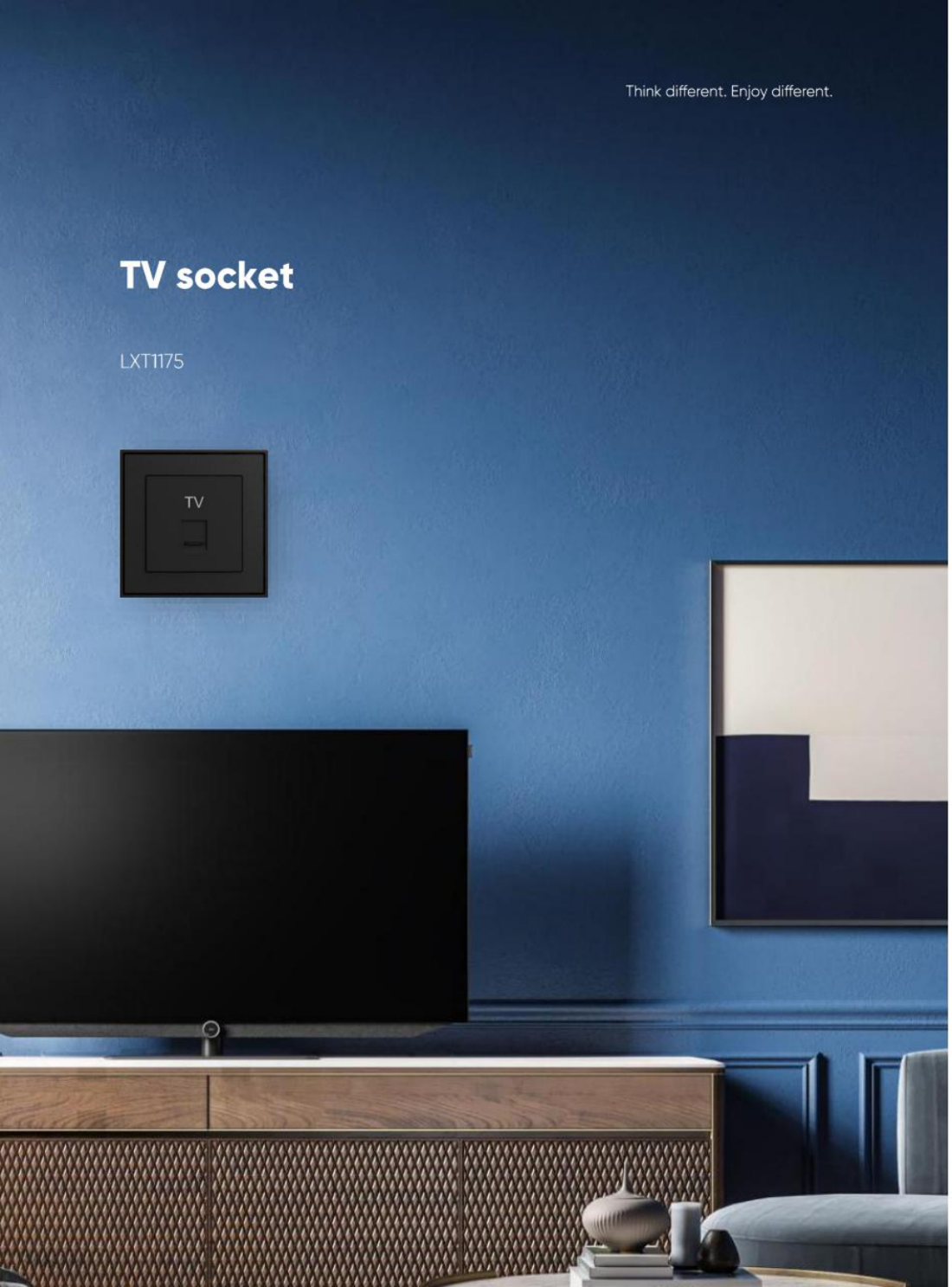

| LXT1175 | TV Socket | KNX / 86-type |
| LXT1177 | Telephone + Computer Socket | KNX / 86-type |
| LXT1178 | TV + Computer Socket | KNX / 86-type |

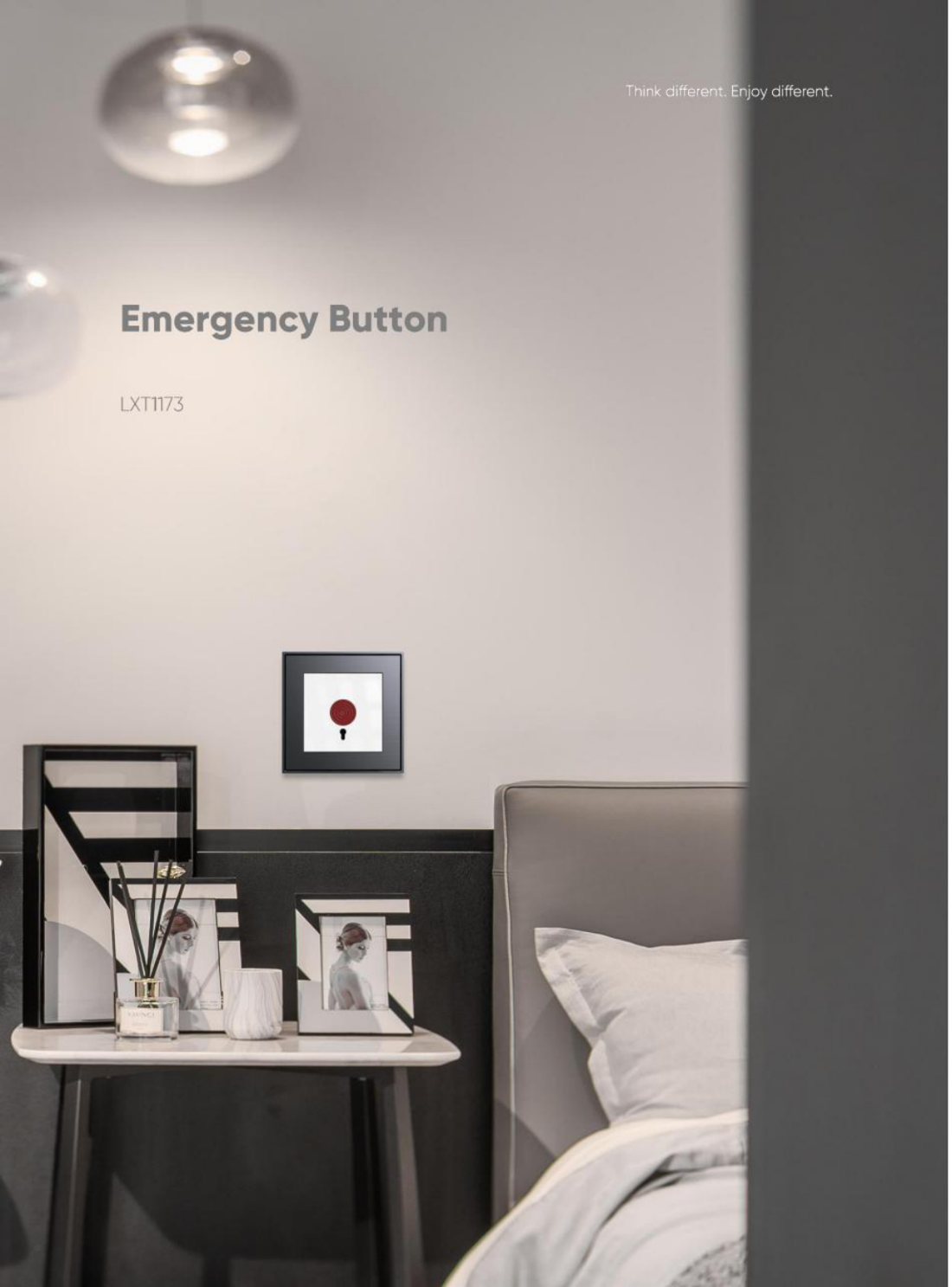

| LXT1173 | Emergency Call Button | KNX / 86-type |
| LXT1179 | 1-Gang Self-Return Switch | KNX / 86-type |
| LXT1180 | 2-Gang Self-Return Switch | KNX / 86-type |
| LXT1181 | 1-Gang / 1-Way Switch | KNX / 86-type |
| LXT1182 | 2-Gang / 1-Way Switch | KNX / 86-type |
| LXT1183 | 3-Gang / 1-Way Switch | KNX / 86-type |
| LXT1184 | 1-Gang / 2-Way Switch | KNX / 86-type |
| LXT1185 | 2-Gang / 2-Way Switch | KNX / 86-type |
The Intelligence Behind the Wall
DIN-rail KNX power supplies, switch actuators, dimming actuators and sensors form the backbone of every LEXA installation. Full technical specifications below.

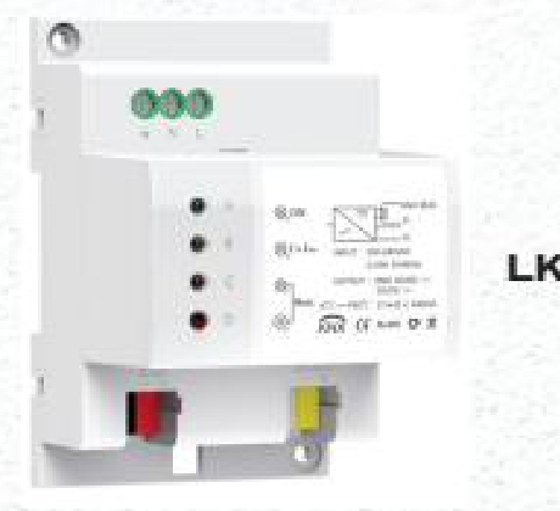

KNX Power Supply
| Input | 180–264 V AC, 50/60 Hz |
|---|---|
| Power consumption | < 6 W (efficiency 86%) |
| KNX output | 29 V DC (SELV), 19 W |
| Auxiliary output | 29 V DC (SELV), 19 W |
| Short-circuit current | < 1.6 A continuous |
| Hold-up time | < 200 ms at 230 V AC, full load |
| Operating temp. | −30 °C to +70 °C |

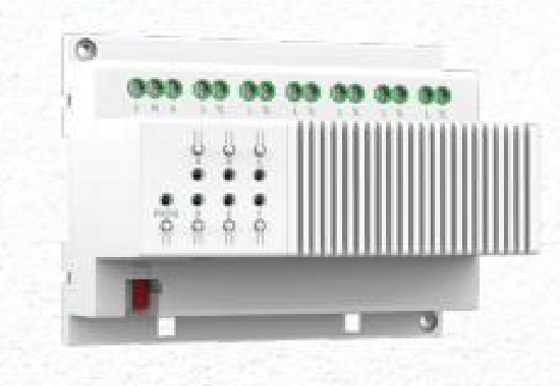

Rail-Mount 6-Load Dimming Actuator
| Bus voltage | 21–30 V DC (SELV) |
|---|---|
| Rated current | ≤ 10 mA |
| Max dimming power | 200 W (capacitive loads) |
| Operating temp. | −30 °C to +70 °C |
| Humidity | < 93% non-condensing |

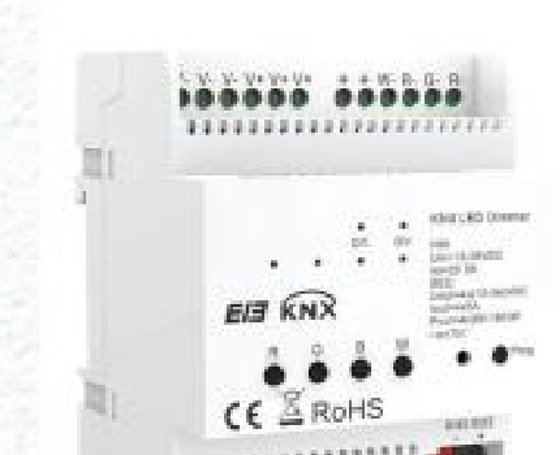

Rail-Mount 4-Load Constant-Voltage Dimming Actuator
| Voltage | 21–30 V DC (input 12–36 V DC) |
|---|---|
| Rated current | 5 A across 4 channels |
| Rated power | 4 × (60–180 W) |
| Indicators | Prog / OT (over-temp) / OV (over-voltage) LEDs |
| Operating temp. | −5 °C to +45 °C |

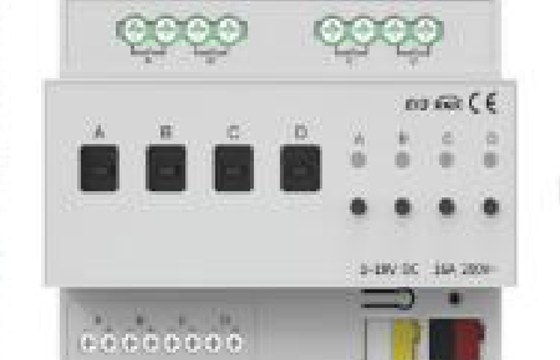

DIN-Rail 4-Load 1–10 V Dimming Actuator
| Bus voltage | 21–30 V DC (via EIB/KNX bus) |
|---|---|
| Bus current | < 12 mA (< 360 mW) |
| Control output | 1–10 V DC (sink), 100 mA/channel |
| Contact rating | 16 A / 250 V AC |
| Fluorescent load | 10 A / 250 V AC (140 µF) |

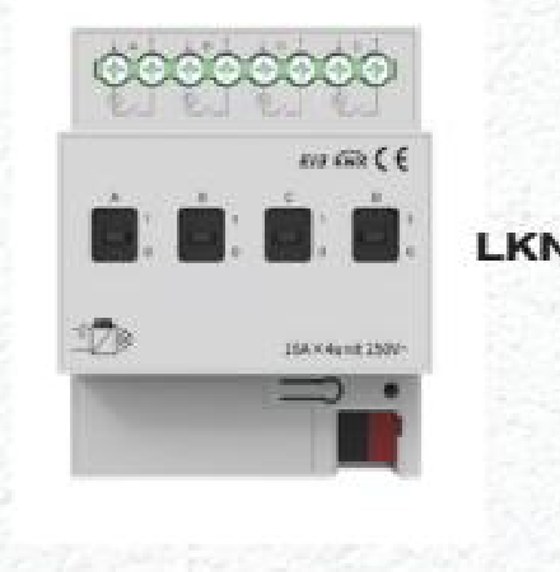

Rail-Mount 4-Load Switch Actuator
| Bus voltage | 21–30 V DC |
|---|---|
| Operating current | < 12 mA (standby < 360 mW) |
| Channels | 4 × 16 A @ 230 V AC (50/60 Hz) |
| Operating temp. | −5 °C to +45 °C |
| Humidity | 10%–95% |

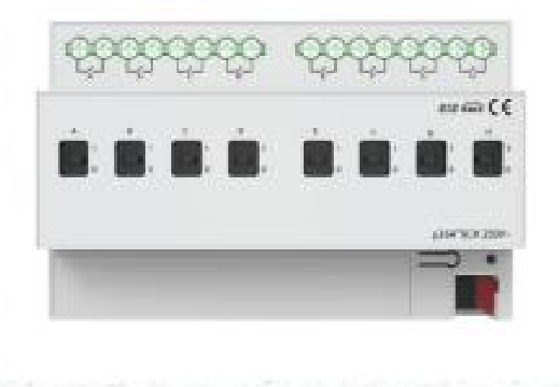

Rail-Mount 8-Load Switch Actuator
| Bus voltage | 21–30 V DC |
|---|---|
| Operating current | < 12 mA (standby < 360 mW) |
| Channels | 8 × 16 A @ 230 V AC (50/60 Hz) |
| Operating temp. | −5 °C to +45 °C |
| Humidity | 10%–95% |

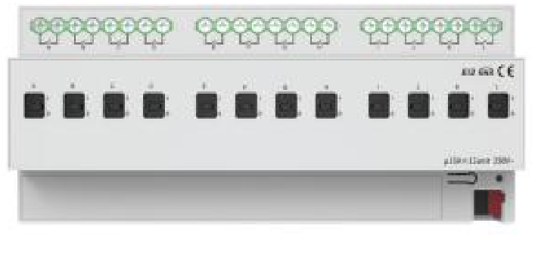

Rail-Mount 12-Load Switch Actuator
| Bus voltage | 21–30 V DC |
|---|---|
| Operating current | < 12 mA (standby < 360 mW) |
| Channels | 12 × 16 A @ 230 V AC (50/60 Hz) |
| Operating temp. | −5 °C to +45 °C |
| Humidity | 10%–95% |

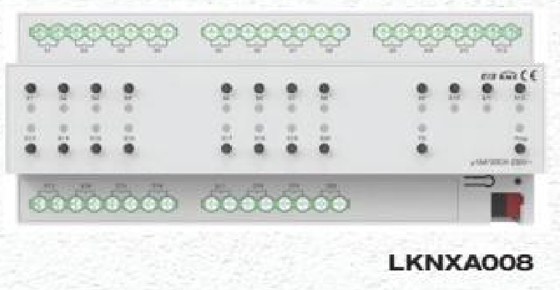

Rail-Mount 20-Load Switch Actuator
| Bus voltage | 21–30 V DC |
|---|---|
| Operating current | < 12 mA (standby < 360 mW) |
| Channels | 20 × 16 A @ 230 V AC (50/60 Hz) |
| Operating temp. | −5 °C to +45 °C |
| Humidity | 10%–95% |

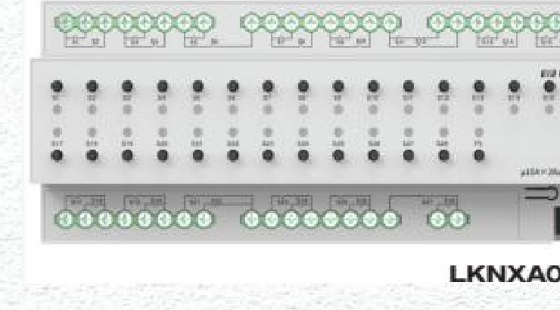

DIN-Rail 28-Load 10 A Switch Actuator
| Bus voltage | 21–30 V DC |
|---|---|
| Operating current | < 12 mA (standby < 360 mW) |
| Channels | 28 × 10 A @ 230 V AC (50/60 Hz) |
| Operating temp. | −5 °C to +45 °C |
| Humidity | 10%–95% |

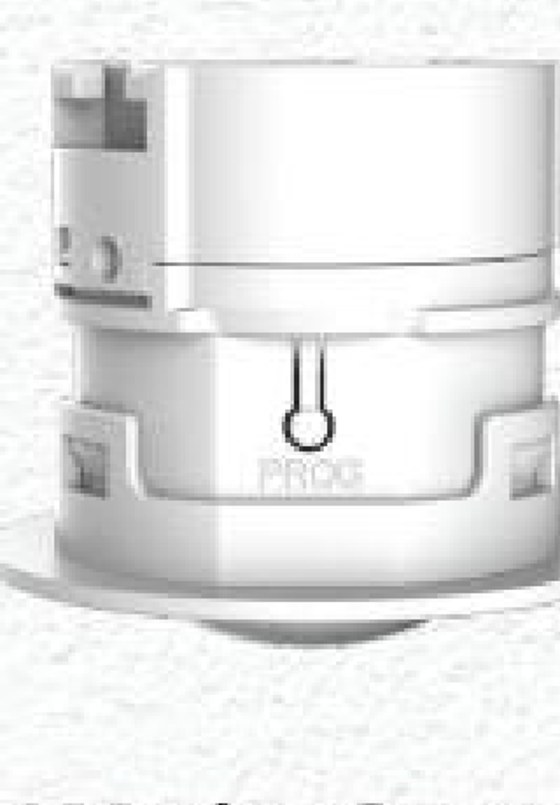

Embedded 3-in-1 Motion Sensor
| Function | PIR motion + temperature + illuminance |
|---|---|
| Bus voltage | 21–32 V DC (KNX bus powered) |
| Rated current | ≤ 10 mA |
| Detection | 4 m radius, 120° angle |
| Mounting | Embedded, Ø42–Ø50 mm cut-out |
Automation for every UAE project
Luxury Villas
Whole-home lighting, curtains, climate & security scenes across Dubai & Abu Dhabi villas.
Apartments
Elegant retrofit and new-build automation for high-rise living.
Hotels & Hospitality
Guest-room management, energy saving and scene control at scale.
Offices & Retail
Smart lighting, HVAC and presence-based energy control for commercial spaces.
Your KNX Home Automation Partner in Dubai & the UAE
Promax supplies, designs and installs complete KNX home automation systems in Dubai and across the UAE — including Abu Dhabi, Sharjah, Ajman, Ras Al Khaimah and Fujairah. As a single-source KNX system integrator, we handle everything from concept and ETS programming to wiring, commissioning and after-sales support, using the certified LEXA KNX product range.
Whether you need smart lighting control, KNX scenario panels, dimming and switch actuators, KNX thermostats for efficient cooling, or motion and presence sensors, our team delivers reliable, standards-based automation for villas, apartments, hotels and commercial buildings. KNX is an open, globally certified protocol — so your investment is future-proof, expandable and never locked to a single vendor.
Talk to Promax for a free site consultation and a tailored KNX design for your project anywhere in the UAE.
