Linen Chute / Laundry Chute Fabrication, Supply & Installation in UAE
Home Other Services Linen Chute
Service
Fabrication, Supply & Installation
Material
Stainless Steel SS 304 / 316
Standard
NFPA-82 · BS 1703
Coverage
All 7 Emirates, UAE
Hygienic Linen & Laundry Chutes for Hotels & Hospitals
A linen chute (laundry / soiled-linen chute) is the fastest, most hygienic way to move dirty linen from every floor of a hotel, hospital or high-rise building down to the laundry room — without staff carrying loads through lifts and corridors. Promax fabricates, supplies and installs complete stainless steel linen chute systems across the UAE, engineered for cleanliness, fire safety and years of daily use.

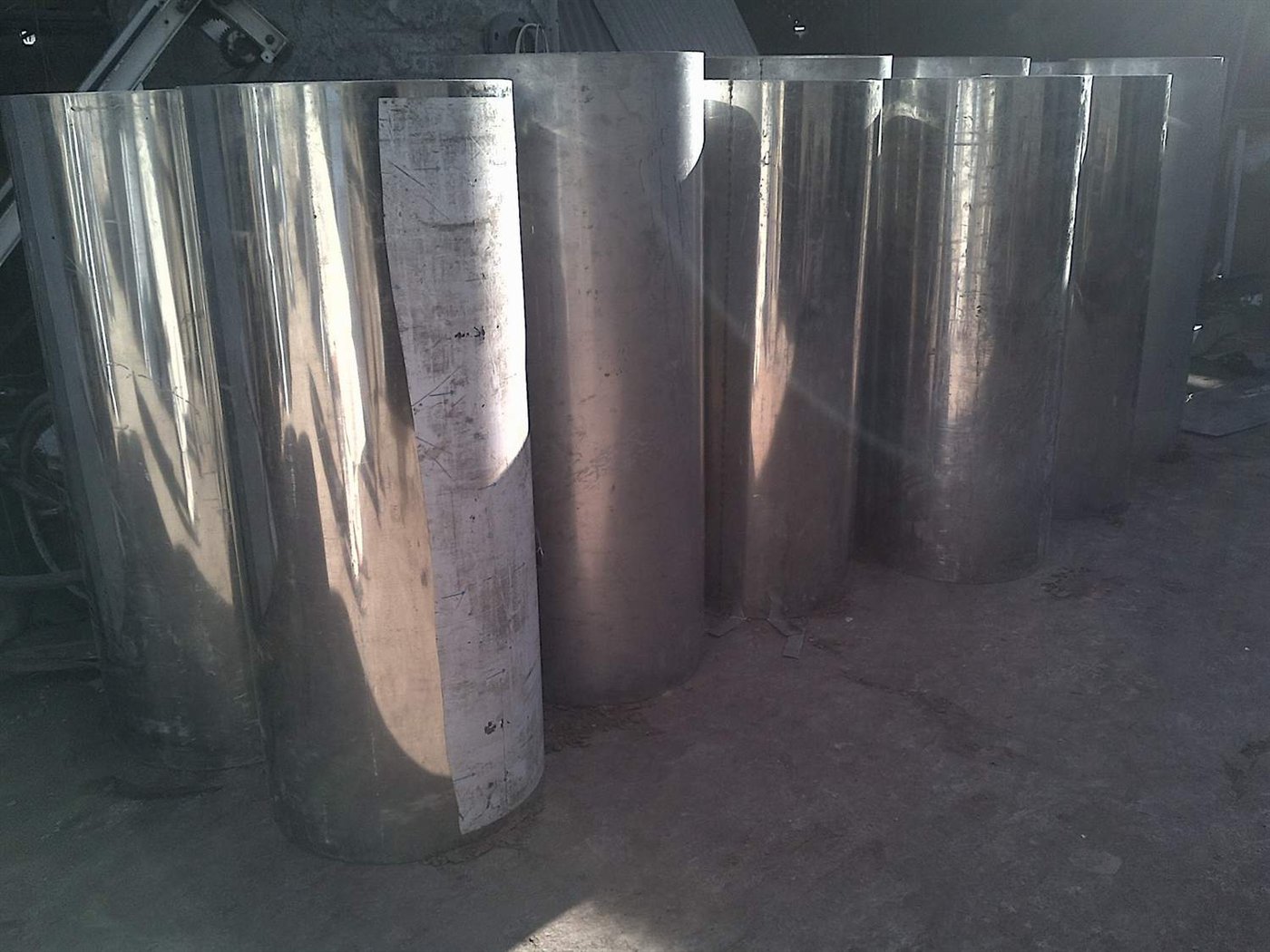

We roll each chute barrel from austenitic stainless steel (SS 304 or SS 316) with continuous TIG-welded seams — a surface that resists the humidity, acids and alkalis found in soiled linen and wipes down clean. Systems are built to NFPA-82 and BS 1703 practice, with 90-minute fire-rated intake doors, door interlocks so only one floor can open at a time, a full-height roof vent and provisions for sprinkler and sanitising units.
Clean, Quiet & Fire-Safe Linen Handling
Stainless Steel SS 304/316
Corrosion-resistant, wipe-clean stainless steel that stands up to damp, soiled linen and repeated sanitising in hospitals and hotels.
90-Minute Fire Doors
Fire-rated, self-closing intake doors with fusible links, meeting NFPA-82 and BS 1703 fire-safety requirements.
Door Interlocks
Only one intake door can open at a time; other floors show a "busy" indicator — preventing jams and cross-floor accidents.
Quiet Spiral Body
Spiral expansion sections and optional isolation pads soften the sound of falling linen on guest and patient floors.
Sanitising Ready
Optional flushing and disinfecting units keep the chute odour-free and hygienic between laundry collections.
Turnkey Delivery
Survey, shop drawings, fabrication, installation and commissioning — one contractor accountable from start to finish.
Anatomy of a Promax Linen Chute
Housekeeping opens a side-hinged, fire-rated intake door on each floor and drops soiled linen into the stainless steel shaft. It slides through spiral sound-dampening sections into a hopper discharge that feeds a linen cart or trolley in the laundry / soiled-linen room. A full-diameter vent carries humidity and odours above the roof, while an optional sprinkler and sanitising line keeps the chute safe and clean.
| Chute material | Stainless steel SS 304 / SS 316, TIG-welded seams |
|---|---|
| Typical thickness | 1.5 mm (16 gauge) rolled barrels |
| Diameter | 400–600 mm (custom to project) |
| Intake doors | Side-hinged, 90-min fire-rated, self-closing, interlocked |
| Discharge | Hopper discharge into linen cart / trolley |
| Compliance | NFPA-82 & BS 1703 · UL-type labelled doors |
Same Craft, Different Purpose
A linen chute and a garbage chute are fabricated the same way — rolled steel barrels, spiral sections, fire-rated doors, roof vent and discharge — but they are tuned for very different jobs.
| Linen / Laundry Chute | Garbage / Rubbish Chute | |
| Material | Stainless steel SS 304/316 (hygienic) | Stainless or galvanised steel |
| Intake door | Side-hinged, interlocked, "busy" indicator | Bottom / side-hinged self-closing |
| Discharge | Hopper into linen cart / trolley | Rolling door into bin / compactor |
| Typical use | Hotels, hospitals, residences — soiled linen | Residences, malls, offices — solid waste |
From Site Survey to Handover
Survey & Drawings
We measure the shaft, floor heights and door positions, then issue shop drawings for consultant approval.
Fabrication

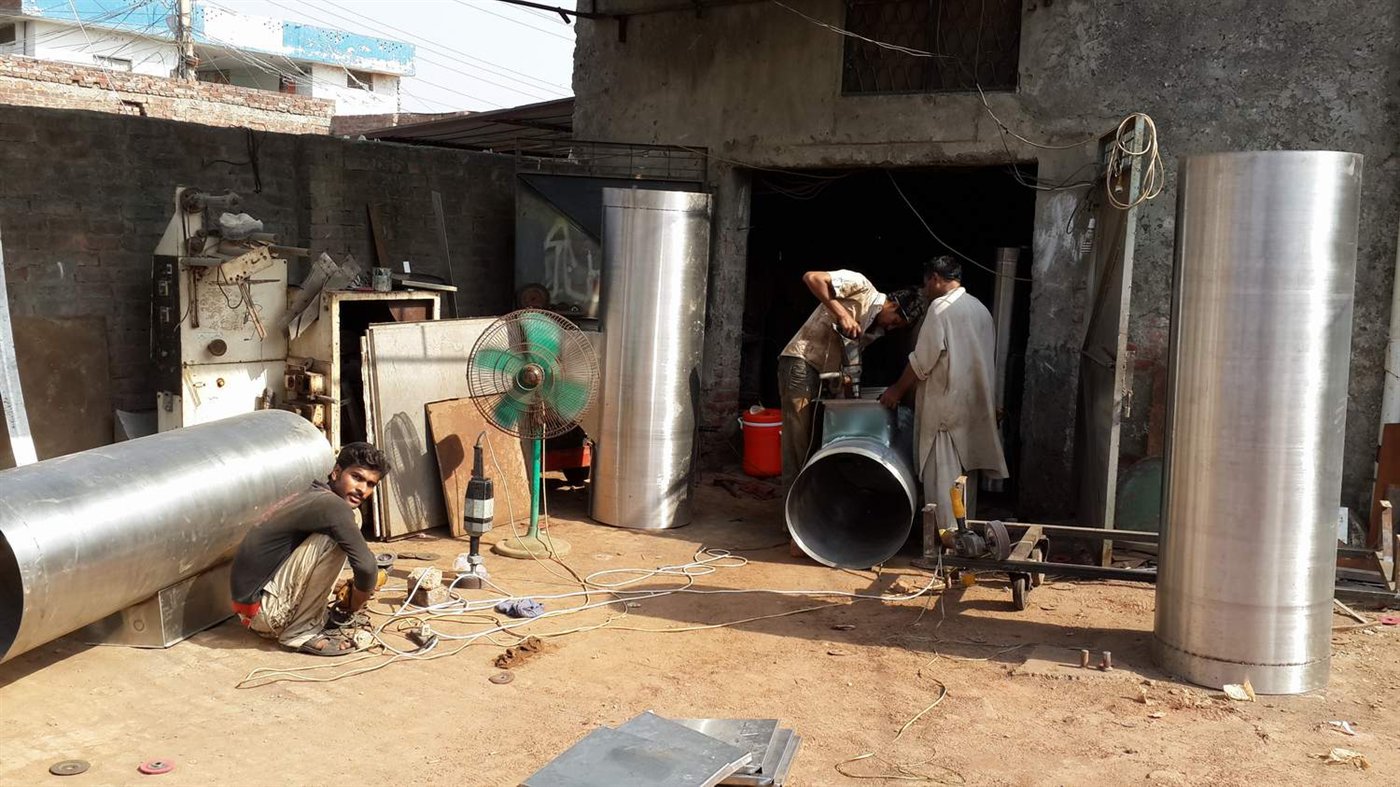

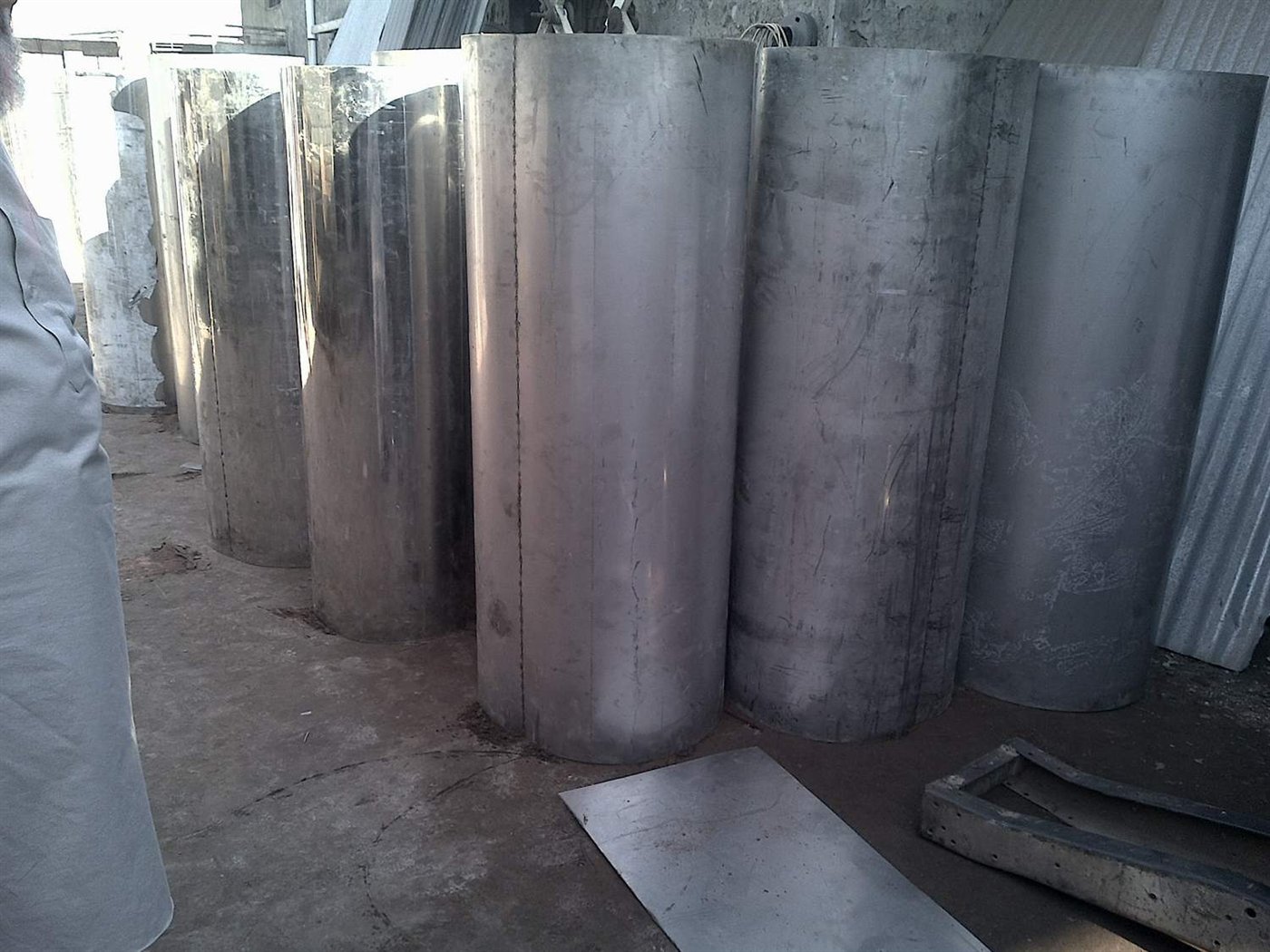

SS 304/316 barrels are rolled and TIG-welded, and the interlocked fire doors, hopper and vent are assembled in our workshop.
Installation

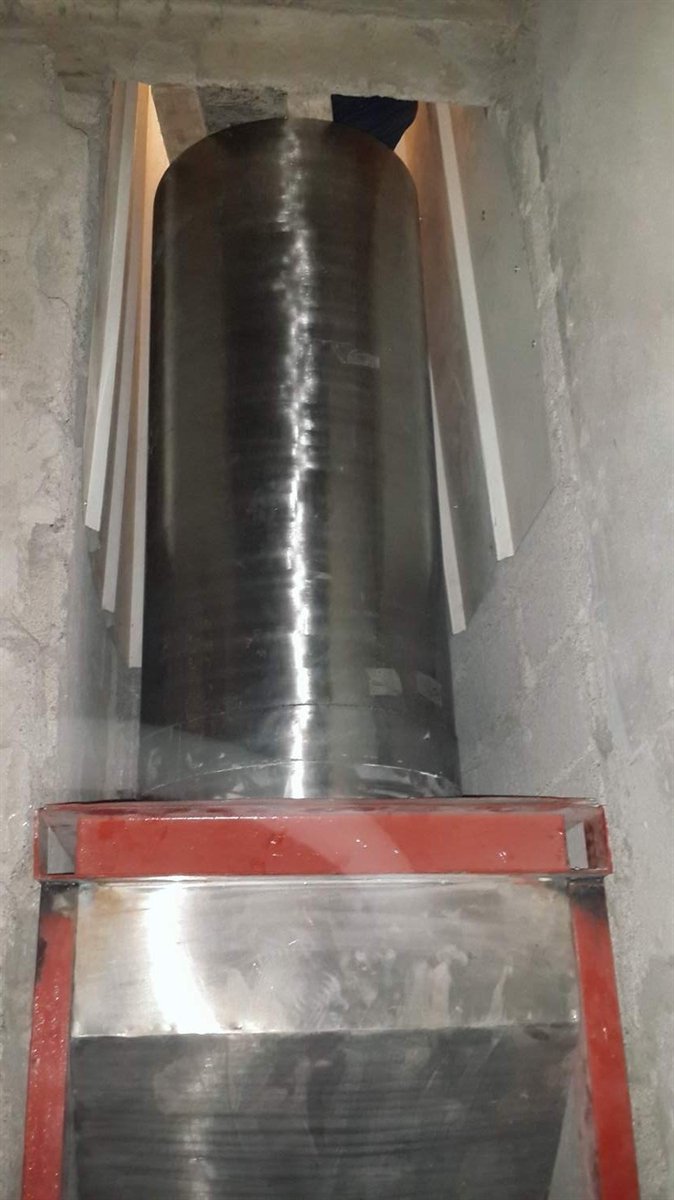

Sections are rigged into the shaft, slip-joined, aligned, braced to each floor and the intake doors fitted flush.
Commission & Handover
Vent, sprinkler, interlock and sanitising connections are tested, and the system handed over with a warranty.
Linen Chutes for UAE Hotels, Hospitals & Towers
From five-star hotels on Sheikh Zayed Road to hospitals in Abu Dhabi and residential towers in Sharjah, a stainless steel linen chute keeps soiled-linen handling fast, sealed and hygienic. Promax supplies and installs linen chutes, laundry chutes and soiled-linen chutes that connect every floor directly to the laundry room — cutting staff time, lift traffic and cross-contamination.
Promax provides linen chute and laundry chute fabrication, supply and installation, plus chute maintenance, cleaning, repair and door replacement across the United Arab Emirates — Dubai, Abu Dhabi, Sharjah, Ajman, Ras Al Khaimah, Umm Al Quwain, Fujairah and Al Ain.
Planning a linen chute for your hotel or hospital?
Get a free site survey, shop drawings and the most competitive price in the UAE. Our engineer visits, measures and advises.
